4×4 CNC Plasma Table

$11,995.00

Description

SPECS

  • Cutting space — 50 inches by 50 inches
  • Speed guide 25-millimeter linear rails
  • 3:1 planetary gearboxes

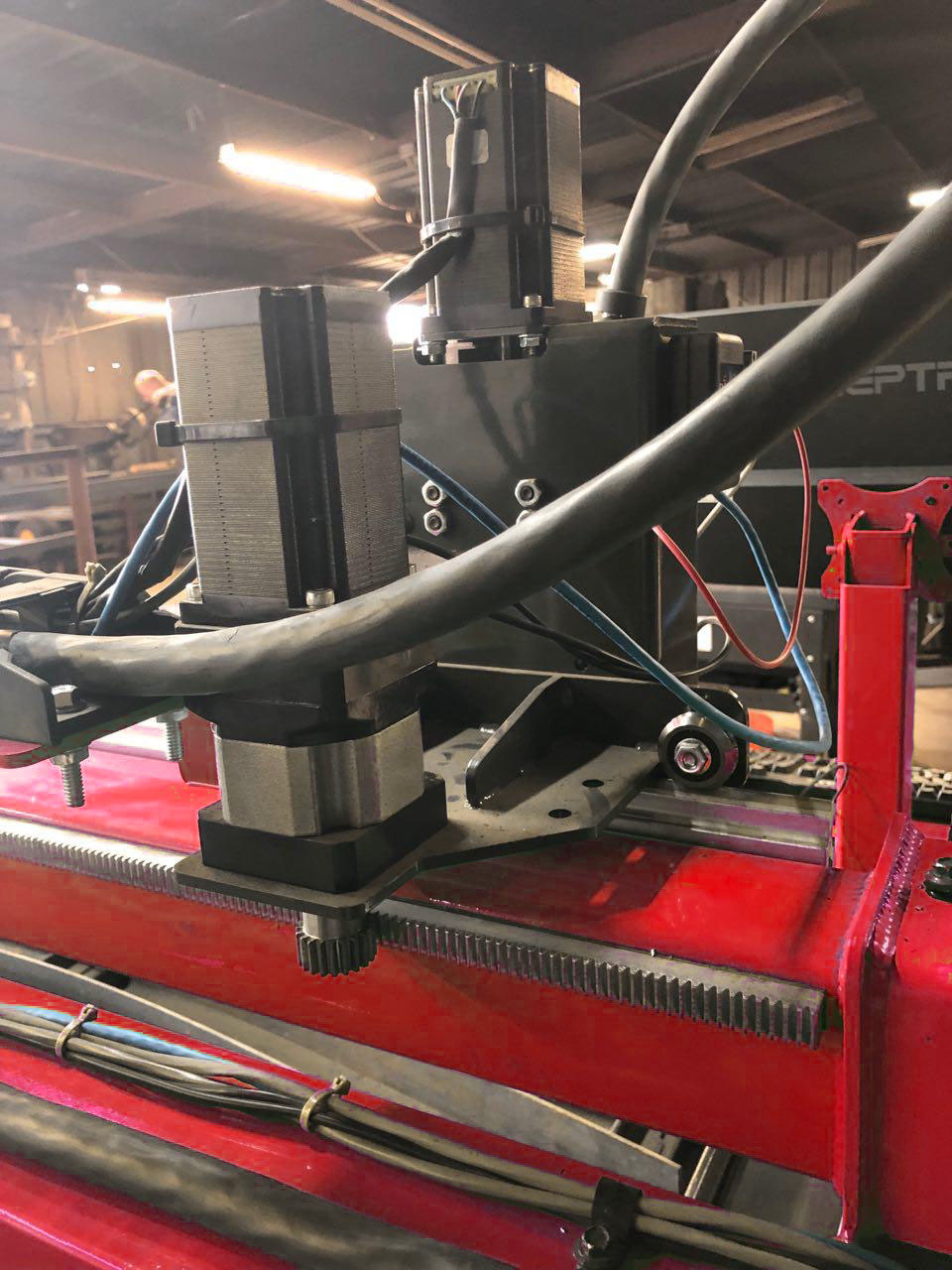

  • Rack and pinion
  • Homing/auto-squaring switches
  • Mini-PC with 32-gigabyte SSD, monitor, mouse, and keyboard
  • 500-watt smart power controller with fault detection and shut down
  • High-speed DTHC5 torch-height control with isolated remote sensor module

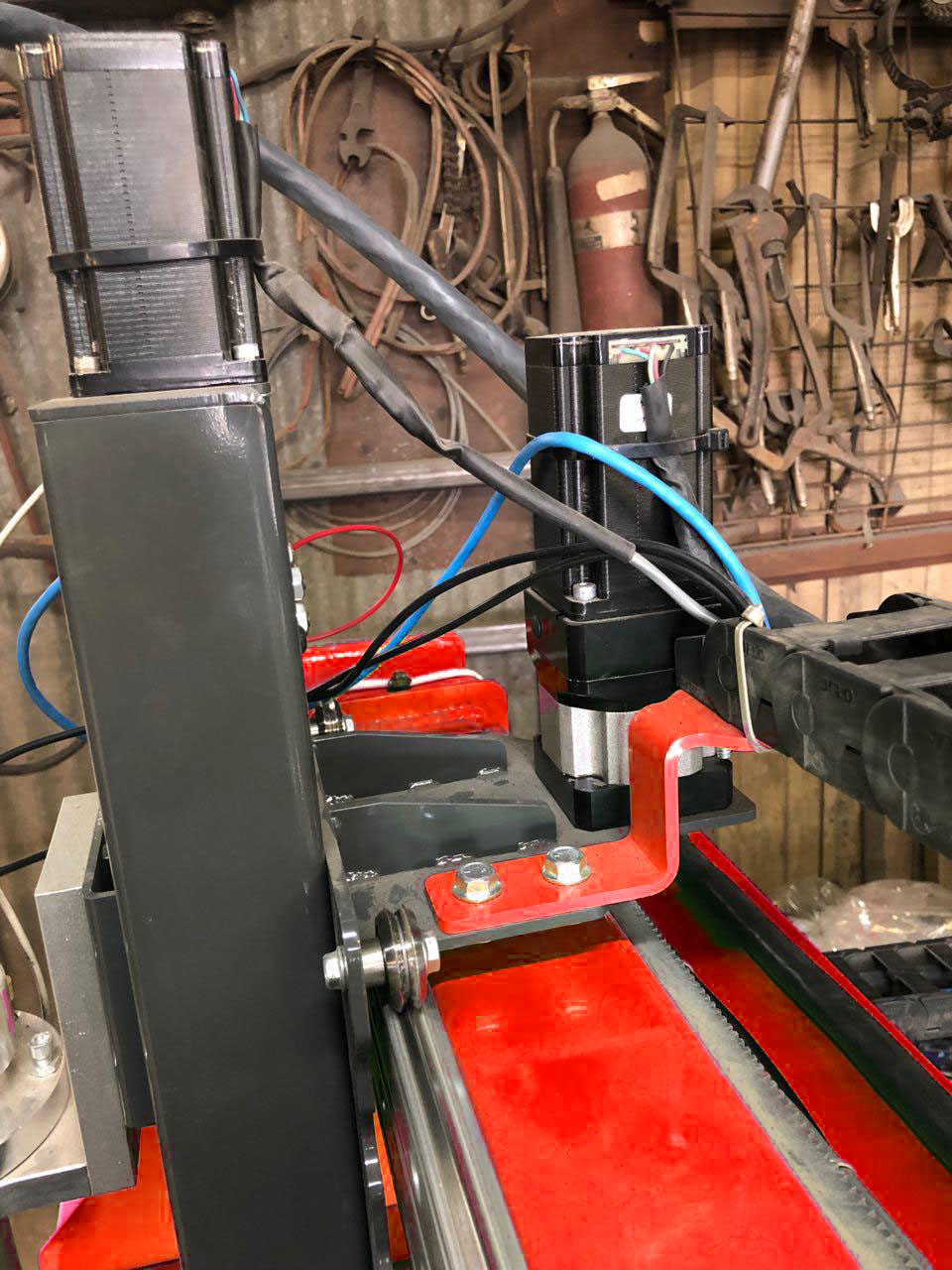

  • Four (4) 620 ounce-inch stepper motors
  • Quality, U.S.-made microstepping motor drivers from Geckodrive
  • Pre-loaded Linux computer and CommandCNC
  • Fully licensed SheetCam and Control
  • 3 by 3 by 11 gauge square tube with fully welded frame and gantry
  • Powder-coated frame and gantry
  • 4-inch water bed with drain

FEATURES

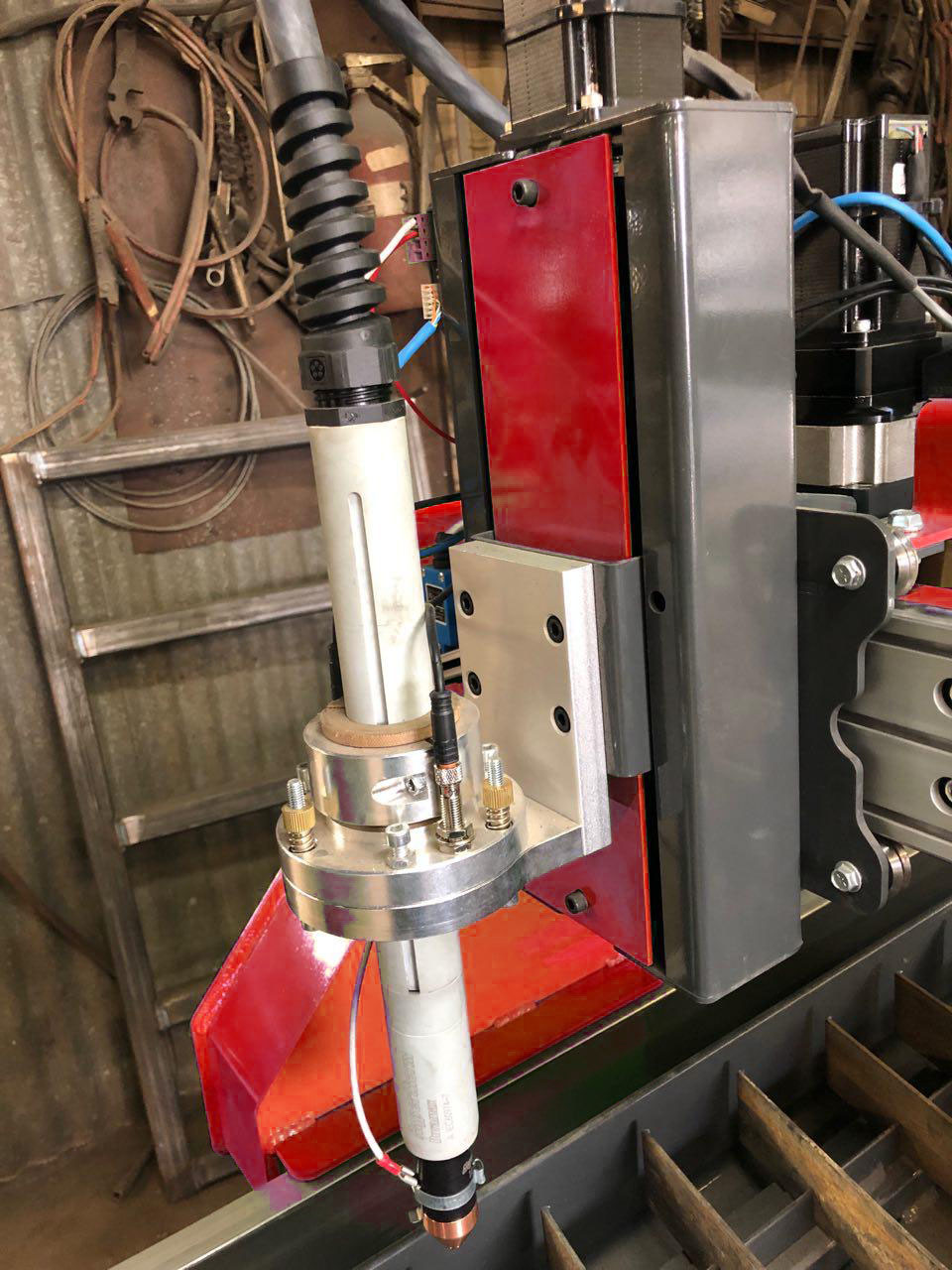

  • Z-axis with rigid rail and ball screw
  • Collision detection torch mount
  • Ohmic sensing
  • Backup touch off
  • Digital torch-height control
  • Dual-drive motors
  • Cut or corrugated HVAC material
  • Preloaded with Hypertherm tool charts
  • Rapid travel speed of 600 inches per minute
  • Cutting speeds match every book spec by Hypertherm and more
  • Compatible with routers, plate markers, and oxy-fuel torches

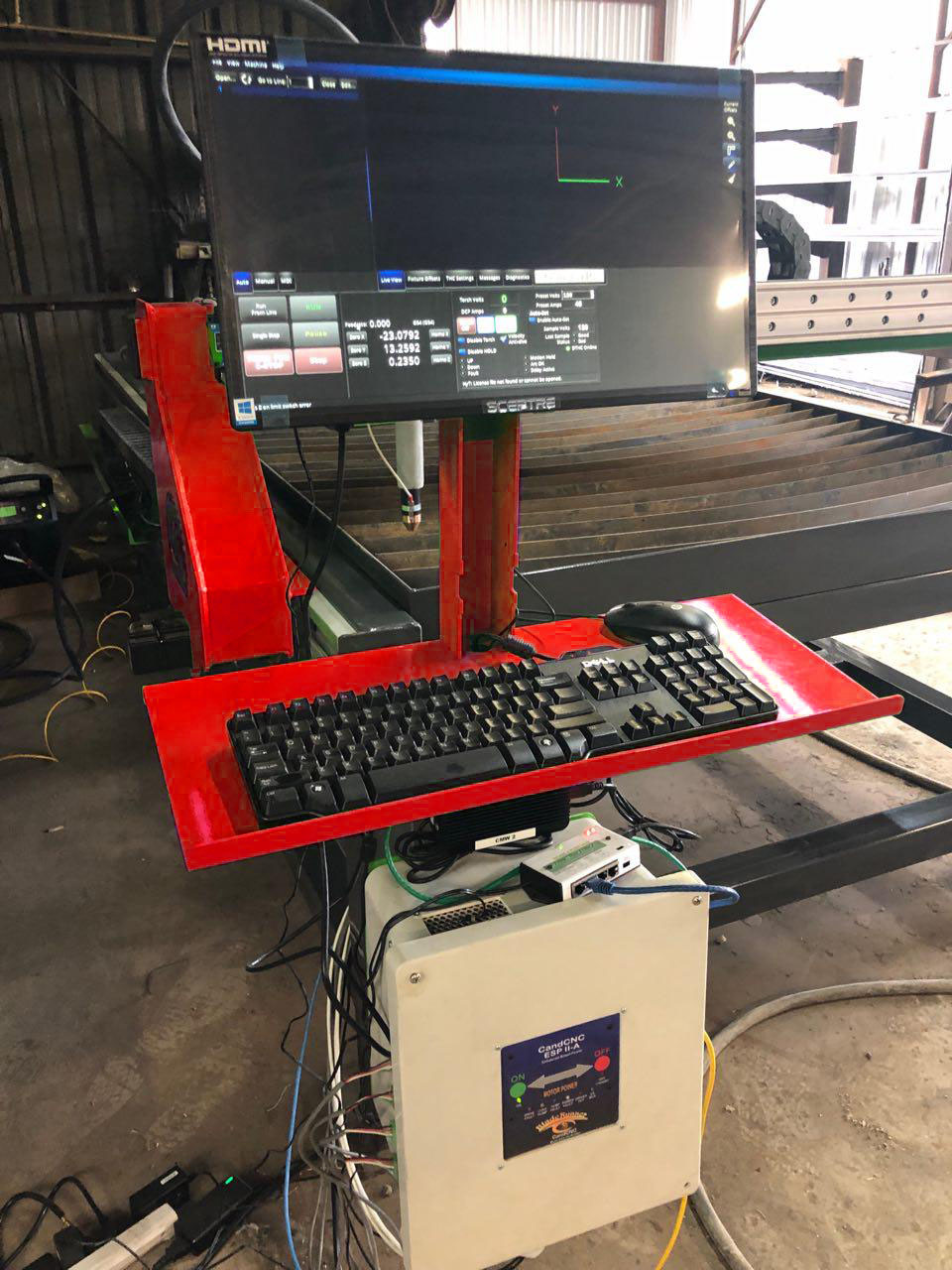

  • Computer station
  • Two-year warranty
  • Lifetime tech support

PLEASE CALL FOR PRICING, OPTIONAL FEATURES, SHIPPING QUOTES AND ESTIMATED LEAD TIMES. (915) 313-9333 ext 11.

SKU: CY4X4CNCPT043020 Category:
